Surface-mounted luminaire IP44 Moon Slim PIR
MOON SLIM 255 830/840 PIR IP44
HIDE-A-LITE
With registration you can access the Würth Elektro online shop selection.
Low-build LED plafond luminaire. A pleasant uplight that evens out contrasts towards the ceiling or wall. Selectable colour temperature via DIP-Switch ColourTemp 3000K or 4000K. Easy to install IP44 lamp. Long lifetime, high lumen output. Model with PIR sensor. Comes with screw holes that fit over a ceiling box. Two entrances at the bottom, one of which is centred. Cable bushings for surface-mounted cable routing from two sides.
Datasheets(X)
Suitable for wall mounting | Yes |
Suitable for suspended mounting | No |
Suitable for built-in mounting | No |
Suitable for surface mounting | Yes |
Suitable for light line configuration | No |
Suitable for workplace according to EN 12464-1 | No |
Lamp type | LED exchangeable |
With light source | Yes |
Suitable for number of light sources | 1 |
Lamp holder | Other |
Housing material | Plastic |
Surface protection housing | Untreated |
Housing colour | White |
Material cover | Plastic, opal |
Type of grid | None |
Voltage type | AC |
Nominal voltage | 220-240 V |
Type of control gear | LED operating device current-controlled |
With control gear | Yes |
Exchangeable control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming GPRS | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off | No |
Dimming phase cut-on | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
Dimming depending on control gear | No |
No dim function | Yes |
Light distributor | Diffuser lens/optic/panel |
Light sharing | Symmetric |
Beam angle | Extreme wide beam >80° |
Colour consistency (McAdam ellipse) | SDCM3 |
Light outlet | Direct |
Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
Rated life time L70/B50 at 25 °C | 100000 h |
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 77 % |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 152 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 152 |
Degree of protection (IP) | IP44 |
Protection class | II |
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
Rated ambient temperature according to IEC 62722-2-1 | -20-40 °C |
Suitable for emergency lighting | No |
Emergency power supply integrated | No |
With movement sensor | Yes |
With light sensor | Yes |
Covering of the luminaire with thermally insulating material possible | No |
With air slots | No |
Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
Max. system power | 12.5 W |
Rated luminous flux according to IEC 62722-2-1 | 1180 lm |
Colour of light | Multi-coloured |
Colour temperature | 3000-4000 K |
Colour rendering index CRI | 80-89 |
Power factor | 0.8 |
Constant light output (CLO) | No |

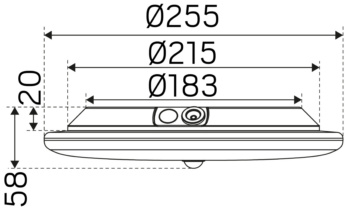

Height/depth | 58 mm |
Outer diameter | 255 mm |
Type of wiring | Suitable for through wiring |
Number of poles | 4 |
Conductor cross section | 2.5 mm² |
Connection type | Push-in clamp |
Luminous intensity | 295 cd |
Colour of light adjustable | Positions |
Luminous flux adjustable | No |
Beam angle adjustable | No |
Operation by Bluetooth | No |
E-number Finland | 4143762 |
Brand | HIDE-A-LITE |
