SCHNEIDER ELECTRIC

MOTOR CIRCUIT-BREAKER 23-32A GV3P32
SCHNEIDER ELECTRIC

Art.-no. WS3760135

EAN 3389119405386

-

Art.-no. WS3760135

-
Quantity
PU
x 1

Show availability at another Center
Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Overload release current setting

23-32 A

Adjustment range undelayed short-circuit release

448-448 A

With thermal overload protection

Yes

Phase failure sensitive

Yes

Switch off technique

Thermomagnetic

Rated operating voltage

690-690 V

Rated permanent current Iu

32 A

Rated operation power at AC-3, 230 V

7.5 kW

Rated operation power at AC-3, 400 V

15 kW

Type of electrical connection of main circuit

Screw connection

Type of control element

Turn button

Device construction

Complete device in housing

With integrated auxiliary switch

No

With integrated under voltage release

No

Number of poles

3

Rated short-circuit breaking capacity lcu at 400 V, AC

100 kA

Degree of protection (IP)

IP20

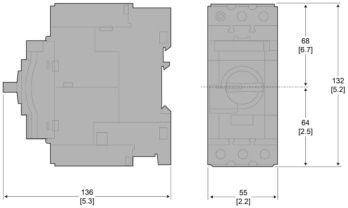

Height

132 mm

Width

55 mm

Depth

136 mm

E-number Finland

3760135

Brand

SCHNEIDER ELECTRIC

Art.-no.
Cust. Mat. No.

Hazardous Material
