Brand: SCHNEIDER ELECTRIC
SKU: WS3760136

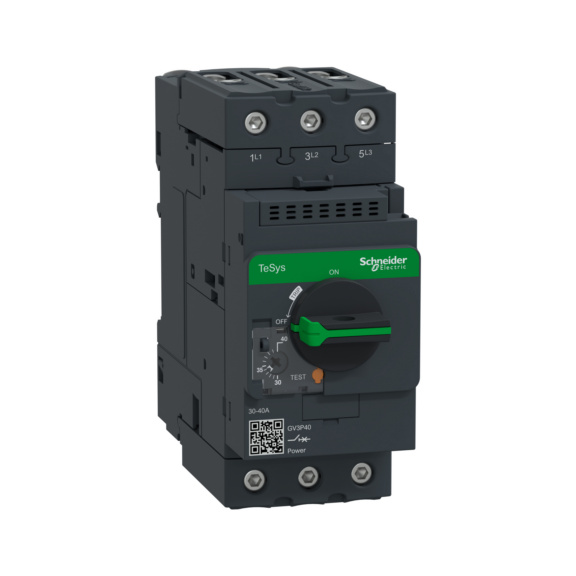

MOTOR CIRCUIT-BREAKER 30-40A GV3P40
SCHNEIDER ELECTRIC

Art.-no. WS3760136

All versions

Art.-no. WS3760136

Quantity

x 1

Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents


Overload release current setting	30-40 A
Adjustment range undelayed short-circuit release	560-560 A
With thermal overload protection	Yes
Phase failure sensitive	Yes
Switch off technique	Thermomagnetic
Rated operating voltage	690-690 V
Rated permanent current Iu	40 A
Rated operation power at AC-3, 230 V	11 kW
Rated operation power at AC-3, 400 V	18.5 kW
Type of electrical connection of main circuit	Screw connection
Type of control element	Turn button
Device construction	Complete device in housing
With integrated auxiliary switch	No
With integrated under voltage release	No
Number of poles	3
Rated short-circuit breaking capacity lcu at 400 V, AC	50 kA
Degree of protection (IP)	IP20
Height	132 mm
Width	55 mm
Depth	136 mm
E-number Finland	3760136
Brand	SCHNEIDER ELECTRIC
