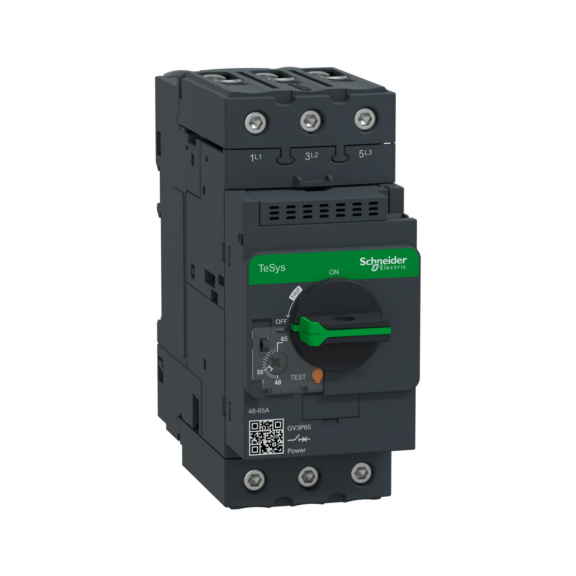

MOTOR CIRCUIT BREAKER 48-65A GV3P65
SCHNEIDER ELECTRIC
Art.-no. WS3760138
EAN 3389119405416
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Overload release current setting | 48-65 A |
Adjustment range undelayed short-circuit release | 910-910 A |
With thermal overload protection | Yes |
Phase failure sensitive | Yes |
Switch off technique | Thermomagnetic |
Rated operating voltage | 690-690 V |
Rated permanent current Iu | 65 A |
Rated operation power at AC-3, 230 V | 18.5 kW |
Rated operation power at AC-3, 400 V | 30 kW |
Type of electrical connection of main circuit | Screw connection |
Type of control element | Turn button |
Device construction | Complete device in housing |
With integrated auxiliary switch | No |
With integrated under voltage release | No |
Number of poles | 3 |
Rated short-circuit breaking capacity lcu at 400 V, AC | 50 kA |
Degree of protection (IP) | IP20 |
Height | 132 mm |
Width | 55 mm |
Depth | 136 mm |
E-number Finland | 3760138 |
Brand | SCHNEIDER ELECTRIC |
