MOTOR CONTROLLER 20-400VA BK ELKO ONE
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Assembly arrangement | Basic element with full cover plate |
Method of operation | Turn button |
App control via Bluetooth | No |
Dimming phase cut-on | Yes |
Dimming phase cut-off | No |
Serial dimmer | No |
Type of load | Other |
Substation input | No |
Light value memory | No |
Applicable with button | No |
Applicable with movement sensor | No |
Applicable with presence indicator | No |
Applicable with time switch/timer | No |
Applicable with transmission button | No |
Applicable with infrared button | No |
Mounting method | Built-in |
Type of fastening | Screw mounting |
Material | Plastic |
Material quality | Thermoplastic |
Halogen free | Yes |
Surface protection | Untreated |
Surface finishing | Matt |
Colour | Black |
RAL-number (similar) | 9005 |
Transparent | No |
Suitable for degree of protection (IP) | IP21 |
Nominal voltage | 230-230 V |
Frequency | 50-50 Hz |
Nominal power inductive load | 20-400 VA |
Connection type | Screwed terminal |
Core cross section | 1.5-2.5 mm² |

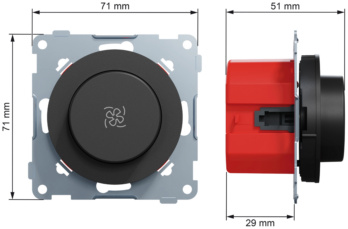

Device width | 71 mm |
Device height | 71 mm |
Device depth | 54 mm |
Min. depth of built-in installation box | 29 mm |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
IFTTT support available | No |
E-number Finland | 2610193 |
Brand | SCHNEIDER ELECTRIC |
