Apparatus box AU3.2, flush-mounted, HF
MOUNTING BOX AU3.2-200
ABB
Art.-no. WS1152334
EAN 6438199014784
With registration you can access the Würth Elektro online shop selection.
The box has 5 side stub knock-outs with two adjacent on the same side. Two base rig stubs can be mounted to the base. Boxes are connected to each other with PMR474 connectors. Made of halogen-free materials (IEC/61249-2-21) and meets filament test requirements as per IEC/EN60670: 2005 (850 °C).
Datasheets(X)
Mounting method | Other |
Shape | Round |
Construction type | Device connection box (round/square) |
Model | Single |
Equipped with | None |

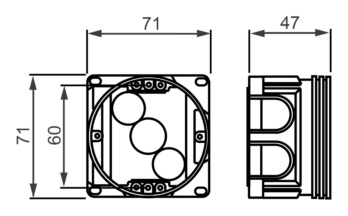

Diameter | 71 mm |
Length | 71 mm |
Width | 71 mm |
Depth | 71-71 mm |
Inner depth | 45 mm |
For number of electric fittings | 1 |
Mounting switching equipment | Screwing |
With screws | Yes |
For tube diameter | 20/25 mm |
Pipe locking | Yes |
Pipe locking optional | No |
Inlet from the rear | Yes |
Material | Plastic |
Halogen free | No |
Surface protection | Untreated |
Colour | White |
Degree of protection (IP) | IP44 |
Cover attachment | Snapped on |
Sealable | No |
With screening | No |
Air tight | No |
Clamp position fixed | No |
Luminaire hook mounting | No |
Special application | None |
E-number Finland | 1152334 |
Brand | ABB |
