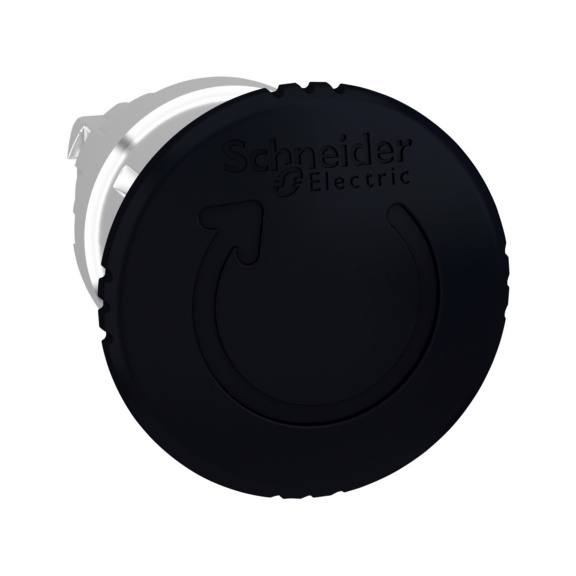

Mushroom head Harmony XB4
MUSHROOM HEAD 40MM BK ZB4BS52 HARMONY
SCHNEIDER ELECTRIC
-
Show availability at another Center
In order to check the stock in a Würth Elektro branch, please log in.
If you have any questions, please call our service hotline at +358 10 308 4700.
Do you want to register as an Online Shop user? Please go to the registration page.
Exclusively for trade customers
With registration you can access the Würth Elektro online shop selection.
Robust Harmony mushroom push-buttons with multiple release modes, sizes and colours, IP66/IP69K protection and extensive approvals for demanding applications.
Harmony XB4
Applications:
- Ingress protection rating up to IP66, IP67, IP69 and IP69K, type 4X
- Operating temperature -40…+70 °C and impact resistance up to IK06
- High vibration and shock resistance, vibration-resistant terminal screws
- Multiple connection options: screw, Faston, spring, plug-in or PCB
- Wide range of contact blocks for low, constant and high currents
- Wide approvals: IEC, UL, CSA, CCC, EAC, JIS, as well as CE marking and marine approvals
Applications:
Suitable for panels and machines that require extensive versatility, a high level of protection and reliable operation in demanding environments.
Product information
Datasheets(X)
 | |
Colour button | Black/white |
Construction type lens | Round |

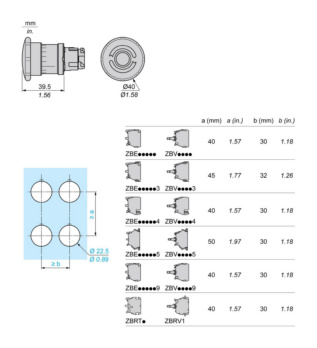

Diameter cap | 40 mm |
Hole diameter | 22.5 mm |
Degree of protection (IP) | IP66 |
Degree of protection (NEMA) | Other |
Type of button | High |
Suitable for lighting | No |
With lighting | No |
Switching function latching | Yes |
Spring-return | No |
With front ring | Yes |
Material front ring | Metal |
Colour front ring | Chrome |
Suitable for emergency stop | No |
Unlocking method | Turn-release |
E-number Finland | 2320570 |
Brand | SCHNEIDER ELECTRIC |
