Mushroom button Harmony
MUSHROOM HEAD ZB5AS944 RED HARMONY
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
Harmony mushroom buttons
- Buttons available with spring return or with a bottom-fixed model
- Button release methods: rotary release, key release or pull release
- Several button sizes: 30, 40, 60 mm diameter
Datasheets(X)
 | |
Colour button | Red |
Construction type lens | Round |

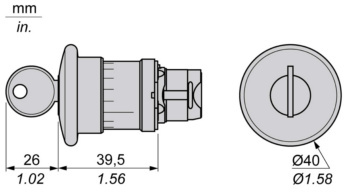

Diameter cap | 40 mm |
Hole diameter | 22.5 mm |
Degree of protection (IP) | IP66 |
Degree of protection (NEMA) | Other |
Type of button | High |
Suitable for illumination | No |
With lighting | No |
Switching function latching | Yes |
Spring-return | No |
With front ring | Yes |
Material front ring | Plastic |
Colour front ring | Black |
Suitable for emergency stop | Yes |
Unlocking method | Key-release |
E-number Finland | 2320828 |
Brand | SCHNEIDER ELECTRIC |
