Circuit board support TRRLCBSPR
Circuit board support, Nylon 6/6, natural
PIIRILEVYTUKI TRRLCBSPR-10-01 NAT
With registration you can access the Würth Elektro online shop selection.
Material: Nylon 6/6 V2 – TMS 001
Colour: Natural
Operating temperature: –40…+85 ˚C

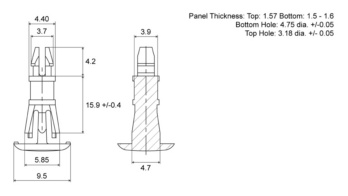

Upper aperture: ∅3.18 mm ± 0.05 / Board thickness 1.57 mm
Lower aperture: ∅4.75 mm ± 0.05 / Board thickness 1.50–1.6 mm
 | |
Body length | 15.9 mm |
Min./max. operating temperature | -40 to +85 °C |
Material | Nylon (polyamide) |
Colour | White, nature |
Min. operating temperature | -40 °C |
Max. operating temperature | +85 °C |
