Plug connector female Ensto

Name: Plug connector female Ensto
Brand: ENSTO
SKU: WS1934527

PLUG CONNECTOR 5-POL FEMALE NAS52.W
ENSTO

All versions

Art.-no. WS1934527

Quantity

x 100

Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

Female spring clamps without cable clamps

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents


Rated voltage	400 V
Rated current	20 A
Number of poles	5
Degree of protection (IP)	IP20
Connection type	Spring clamp connection
Model	Plug
Built-in version	Built-in part/plug-in connection
Insert direction	Straight
Connection cross section (solid-core)	0.5-2.5 mm²
Number of connections per pole	2
Pole codification	3, N, PE, 2, 1
Mechanical coding	Yes
Colour coding/contact insert	White
Colour of the separate adapter piece	Without adapter piece
Housing colour	White
Type of locking	Integrated in plug-in connector
Max. continuous temperature resistance contact part	70 °C
Max. continuous temperature resistance strain relief	70 °C
Housing material	Polyamide (PA)
Halogen free	Yes
Contact material	CuZn
Surface treatment contacts	Silver-plated
Pollution degree	2
Rated surge voltage	4 kV

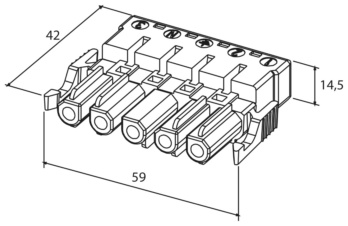

Length	42 mm
Height	15 mm
Width	59 mm
E-number Finland	1934527
Brand	ENSTO
