Plug connector male Ensto
PLUG CONNECTOR NAC31.W
ENSTO
With registration you can access the Würth Elektro online shop selection.
Male spring clamps without cable clamps. For single and few-strand conductors.
Datasheets(X)
Rated voltage | 250 V |
Rated current | 20 A |
Degree of protection (IP) | IP20 |
Connection type | Screw connection |
Model | Plug |
Built-in version | Built-in part/plug-in connection |
Insert direction | Straight |
Connection size thread | M3 |
Connection cross section (fine-strand) | 0.75-4 mm² |
Connection cross section (solid-core) | 0.75-4 mm² |
Number of connections per pole | 1 |
Pole codification | L, N, PE |
Mechanical coding | Yes |
Colour coding/contact insert | White |
Colour of the separate adapter piece | Without adapter piece |
Housing colour | White |
Type of locking | Integrated in plug-in connector |
Max. continuous temperature resistance contact part | 70 °C |
Max. continuous temperature resistance strain relief | 70 °C |
Housing material | Polyamide (PA) |
Halogen free | Yes |
Contact material | CuZn |
Surface treatment contacts | Silver-plated |
Pollution degree | 2 |
Rated surge voltage | 4 kV |

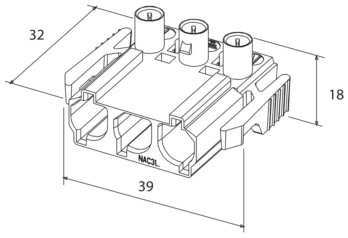

Length | 32 mm |
Height | 18 mm |
Width | 39 mm |
E-number Finland | 1934510 |
Brand | ENSTO |
