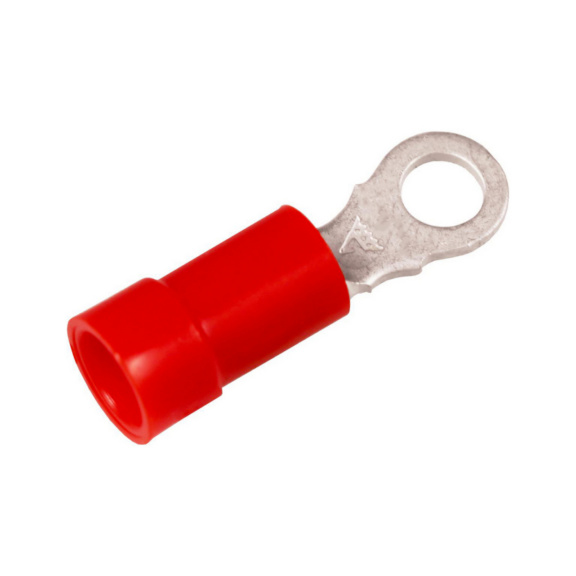

PRE-INSULATED RING A1565R
ELPRESS
Art.-no. WS5215205
EAN 7393487004351
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Bolt dimension (metric) | 6 |
Flange shape | Ring shape |
According to DIN | Yes |
Insulation | Polycarbonate (PC) |
Colour insulation | Red |
Nominal cross section | 0.5-1.5 mm² |
Reel/roll packaging | No |
Sleeve form | Short |
AWG-range | 16-20 |
Suitable for solid conductors | No |
Suitable for stranded conductors | Yes |
Suitable for fine strand conductors | Yes |
Suitable for high temperatures (to 650 °C) | No |
Suitable for insulated varnish | No |
Suitable for round conductors | Yes |
Suitable for flat conductors | No |
For pull protected connections | No |
Material | Copper |
Surface protection | Tinned |
Halogen free | Yes |
Total length | 26.5 mm |
E-number Finland | 5215205 |
Brand | ELPRESS |
