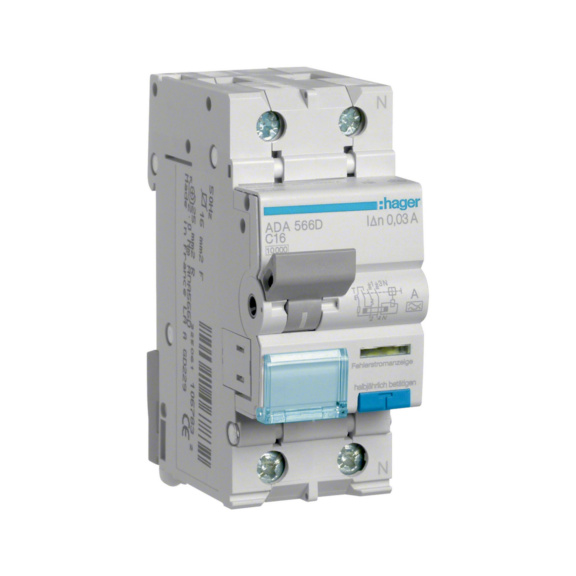

Residual current circuit breaker with overcurrent protection ADA Hager

Number of poles (total)

2

Number of protected poles

1

Rated voltage

240 V

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

4 kV

Rated current

16 A

Rated fault current

0.03 A

Leakage current type

A

Current limiting class

3

Rated short-circuit breaking capacity according to IEC 60947-2

10 kA

Rated short-circuit breaking capacity Icn according to EN 61009-1

10 kA

Disconnection characteristic

Undelayed

Surge current capacity

0.25 kA

Voltage type

AC

Frequency

50 Hz

Release characteristic

C

Concurrently switching neutral conductor

Yes

With interlocking device

Yes

Overvoltage category

3

Pollution degree

2

Ambient temperature during operating

-25-40 °C

Width in number of modular spacings

2

Built-in depth

68 mm

Anti-nuisance tripping version

No

Connectable conductor cross section solid-core

1-25 mm²

Connectable conductor cross section multi-wired

1-16 mm²

E-number Finland

3246133

Brand

HAGER
