Residual current circuit breaker with overcurrent protection Easy9

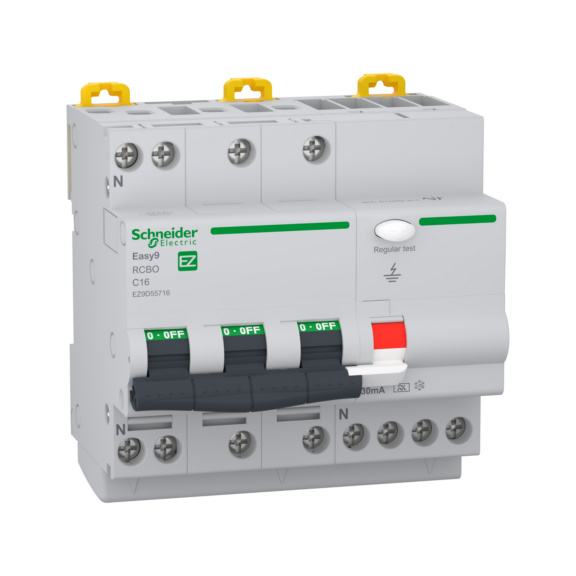

RCBO EASY9 3-P+N C16A 30mA
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
Easy9 RCBO – comprehensive protection in one device
Easy9 series residual current circuit breakers with overcurrent protection (RCBOs) combine ground leakage protection and line protection in one device. They protect against electric shocks from direct and indirect contact, prevent fire risks and provide protection against short-circuit and overload currents. In addition, they enable safe disconnection of the circuit.
Product benefits
Two protections in one – ground leakage protection + line protection
Safety – protects against electric shock and fire risks
Easy installation – clear status indicators and ergonomic lever
Reliability – Protection in accordance with IEC/EN 60898-1
Technical features
- Rated current: 10 A, 16 A
- Breaking capacity: 6 kA
- Sensitivity: 30 mA
- Type: A
- Surge voltage rating: 4 kV
- Charts: B and C. Curve B: heating and lighting loads, curve C: motors and larger lighting groups
- Colour-coded indicators to show device status
- Connector design guides cables to the correct positions
- Lever and test button pattern improves grip
Applications
- Residential buildings
- Lightweight distribution systems
- Renovation projects
Datasheets(X)
Number of poles (total) | 4 |
Number of protected poles | 3 |
Rated voltage | 400 V |
Rated insulation voltage Ui | 400 V |
Rated impulse withstand voltage Uimp | 4 kV |
Rated current | 16 A |
Rated fault current | 0.03 A |
Leakage current type | A |
Current limiting class | 3 |
Rated short-circuit breaking capacity Icn according to EN 61009-1 | 6 kA |
Disconnection characteristic | Undelayed |
Voltage type | AC |
Frequency | 50 Hz |
Release characteristic | C |
Concurrently switching neutral conductor | Yes |
With interlocking device | No |
Ambient temperature during operating | -25-40 °C |
Width in number of modular spacings | 4 |
Built-in depth | 50 mm |
Anti-nuisance tripping version | No |
Degree of protection (IP) | IP20 |
Connectable conductor cross section solid-core | 1-16 mm² |
Connectable conductor cross section multi-wired | 1-10 mm² |
E-number Finland | 3254548 |
Brand | SCHNEIDER ELECTRIC |
