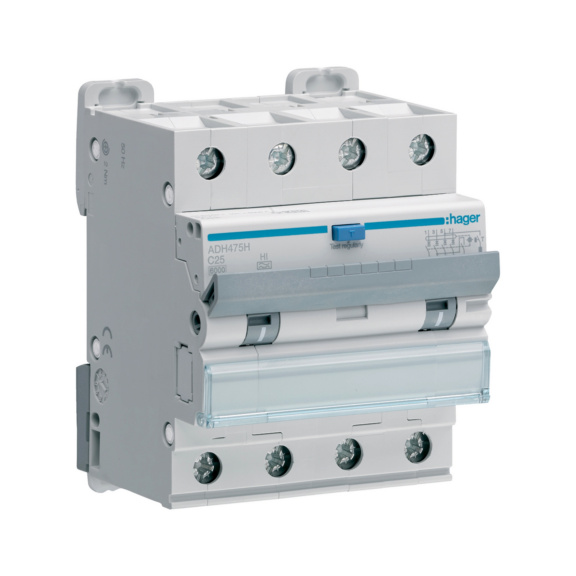

RCCB ADH475H 30MA A-HI/4X25A C 6KA
HAGER
With registration you can access the Würth Elektro online shop selection.
24 month warranty
Datasheets(X)
Number of poles (total) | 4 |
Number of protected poles | 4 |
Rated voltage | 400 V |
Rated current | 25 A |
Rated fault current | 0.03 A |
Leakage current type | A |
Current limiting class | 3 |
Voltage type | AC |
Frequency | 50 Hz |
Overvoltage category | 3 |
Pollution degree | 2 |
Width in number of modular spacings | 4 |
Built-in depth | 70 mm |
Degree of protection (IP) | IP2X |
E-number Finland | 3246223 |
Brand | HAGER |
