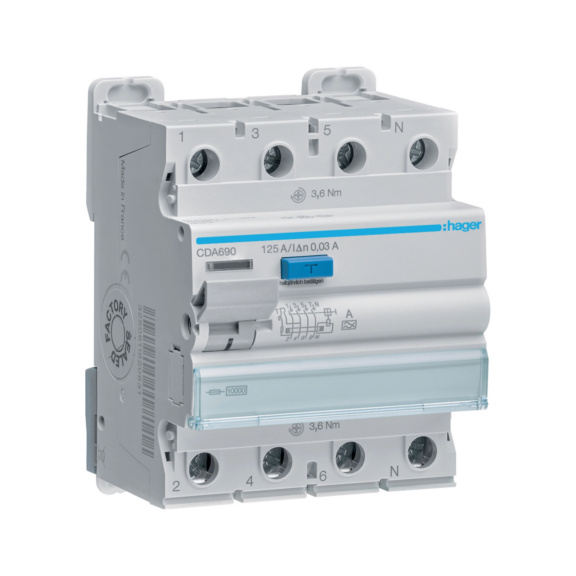

Residual current circuit breaker CDA Hager
RCCB CDA690 30MA A/4X125A 10KA
HAGER
With registration you can access the Würth Elektro online shop selection.
Residual current circuit breakers type A for reliable personal protection and installation safety. The devices comply with the standards DIN EN 61008‑1, EN 61008‑2‑1 and VDE 0664‑10 and ‑11. .
The circuit breakers are equipped with an installer-friendly double connector for the supply connection, which makes installation faster and easier. The devices can be equipped with additional modules that can be retrofitted and can be removed individually from the busbar installation.
Terminal touch-proofing in accordance with DIN VDE 0106 part 100. The devices have a marking window for group markings. The product is not suitable for use in chlorine-containing environments.
24 month warranty
Datasheets(X)
Number of poles | 4 |
Rated voltage | 415 V |
Rated current | 125 A |
Rated fault current | 30 A |
Rated insulation voltage Ui | 500 V |
Rated impulse withstand voltage Uimp | 4 kV |
Mounting method | DIN rail |
Leakage current type | A |
Surge current capacity | 3 kA |
Frequency | 50 Hz |
Degree of protection (IP) | IP20 |
Width in number of modular spacings | 4 |
Built-in depth | 70 mm |
Ambient temperature during operating | -25-40 °C |
Pollution degree | 2 |
Connectable conductor cross section multi-wired | 1-35 mm² |
Connectable conductor cross section solid-core | 1-50 mm² |
E-number Finland | 3246487 |
Brand | HAGER |
