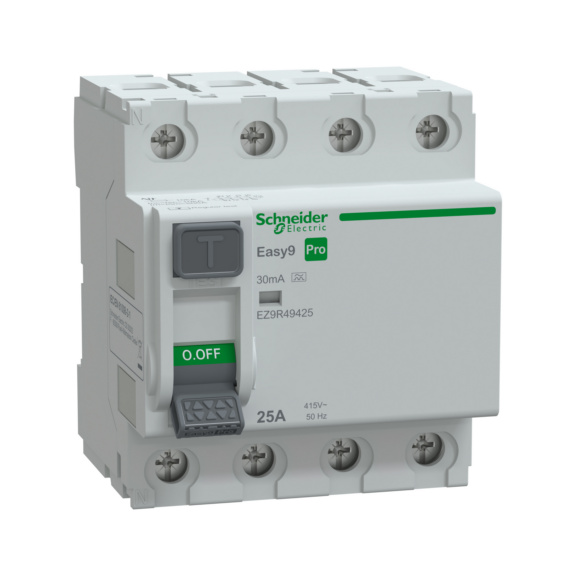

RCCB EASY9 4P 25A 30mA A EZ9R49425
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
Number of poles | 4 |
Rated voltage | 415 V |
Rated current | 25 A |
Rated fault current | 0.03 A |
Rated insulation voltage Ui | 500 V |
Rated impulse withstand voltage Uimp | 4 kV |
Mounting method | DIN rail |
Leakage current type | A |
Selective protection | No |
Short-time delayed tripping | No |
Surge current capacity | 0.25 kA |
Voltage type | AC |
With interlocking device | No |
Frequency | 50 Hz |
Additional equipment possible | No |
Degree of protection (IP) | IP20 |
Width in number of modular spacings | 4 |
Built-in depth | 45 mm |
Ambient temperature during operating | -5-60 °C |
Pollution degree | 2 |
Connectable conductor cross section multi-wired | 1-25 mm² |
Connectable conductor cross section solid-core | 1-35 mm² |
Explosion-proof | No |
E-number Finland | 3254566 |
Brand | SCHNEIDER ELECTRIC |
