Type of electric connection

Screw connection

Function delay-on energization

Yes

Function delay on de-energization

Yes

Function floating contact on energization

No

Function floating contact on de-energization

No

Function star-delta

No

Function pulse shaping

Yes

Function flashing, starting with pause, fixed time

Yes

Function flashing, starting with pulse, fixed time

Yes

Clock function, starting with pause, variable

No

Clock function, starting with pulse, variable

No

Remote operation possible

No

Suitable as remote control

No

Pluggable on auxiliary contact block

No

Rated control supply voltage AC 50 Hz

24-240 V

Rated control supply voltage AC 60 Hz

24-240 V

Rated control supply voltage DC

24-240 V

Voltage type for actuating

AC/DC

Nominal current

5 A

Time range

0.02-1088888 s

Number of outputs, undelayed, normally closed contact

0

Number of outputs, undelayed, normally open contact

0

Number of outputs, undelayed, change-over contact

0

Number of outputs, delayed, normally closed contact

0

Number of outputs, delayed, normally open contact

0

Number of outputs, delayed, change-over contact

2

Outputs, reversible delayed/undelayed

No

With semiconductor output

No

Suitable for DIN rail (top hat rail) mounting

No

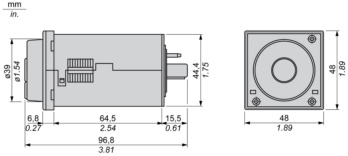

Width

48 mm

Height

48 mm

Depth

80 mm

E-number Finland

2721493

Brand

SCHNEIDER ELECTRIC
