Time relay blink Zelio

Type of electric connection

Screw connection

Function delay-on energization

Yes

Function delay on de-energization

Yes

Function floating contact on energization

Yes

Function floating contact on de-energization

Yes

Function star-delta

Yes

Function pulse shaping

Yes

Function flashing, starting with pause, fixed time

Yes

Function flashing, starting with pulse, fixed time

Yes

Clock function, starting with pause, variable

Yes

Clock function, starting with pulse, variable

Yes

Remote operation possible

No

Suitable as remote control

No

Pluggable on auxiliary contact block

No

Rated control supply voltage AC 50 Hz

12-240 V

Rated control supply voltage AC 60 Hz

12-240 V

Voltage type for actuating

AC/DC

Nominal current

8 A

Time range

0.1-360000 s

Number of outputs, undelayed, normally closed contact

0

Number of outputs, undelayed, normally open contact

0

Number of outputs, undelayed, change-over contact

1

Number of outputs, delayed, normally closed contact

0

Number of outputs, delayed, normally open contact

0

Number of outputs, delayed, change-over contact

1

Outputs, reversible delayed/undelayed

No

With semiconductor output

No

Suitable for DIN rail (top hat rail) mounting

Yes

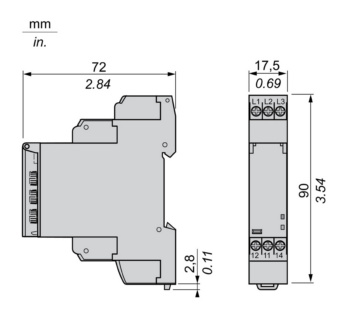

Width

17.5 mm

Height

90 mm

Depth

72 mm

E-number Finland

2721455
