Replacement kit ReLine
REPLACEM. KIT RELINE IP20 5200lm 1200MM
HIDE-A-LITE
With registration you can access the Würth Elektro online shop selection.
ReLine replacement kit for easy replacement of fluorescent lamps. You no longer need to replace the whole luminaire - just open the existing cover and replace the fluorescent tube with the replacement kit. The ReLine replacement set is available in two different lengths. The kit gives you a replaceable LED and driver, as well as the possibility to choose colour temperature via DIP-switch Colour Temp. For ReLine 1200 you can also adjust the lumen output with DIP-switch Power. The kit comes with double sided tape and is easily fitted with both screws and tape. Use the label supplied to mark the luminaire after replacement.
Datasheets(X)
 | |
Mounting method | Other |
Max. system power | 39 W |
Housing material | Steel |
Housing colour | White |
Voltage type | AC |
Nominal voltage | 220-240 V |
Nominal current | 750-950 mA |
Type of control gear | LED operating device current-controlled |
Exchangeable control gear | Yes |
With control gear | Yes |
No dim function | Yes |
Light distributor | None |
Light sharing | Symmetric |
With light source | Yes |
Beam angle | Extreme wide beam >80° |
Colour consistency (McAdam ellipse) | SDCM3 |
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 91 % |
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 84 % |
Degree of protection (IP) | IP20 |
Protection class | I |
Rated ambient temperature according to IEC 62722-2-1 | -20-50 °C |
Lamp type | LED exchangeable |
Rated luminous flux according to IEC 62722-2-1 | 5200 lm |
Luminaire efficacy | 133 lm/W |
Colour of light | White |
Colour temperature | 3000-4000 K |
Colour rendering index CRI | 80-89 |
Total harmonic distortion | 15 |
Power factor | 0.92 |
Colour of light adjustable | Positions |
Beam angle adjustable | No |
Luminous flux adjustable | Positions |

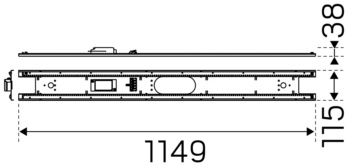

Width | 115 mm |
Height/depth | 35 mm |
Length | 1149 mm |
Type of wiring | Suitable for through wiring |
Number of poles | 5 |
Conductor cross section | 2.5 mm² |
Connection type | Push-in clamp |
With protective cover | No |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 38 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 60 |
E-number Finland | 4318396 |
Brand | HIDE-A-LITE |
