Rivet nut

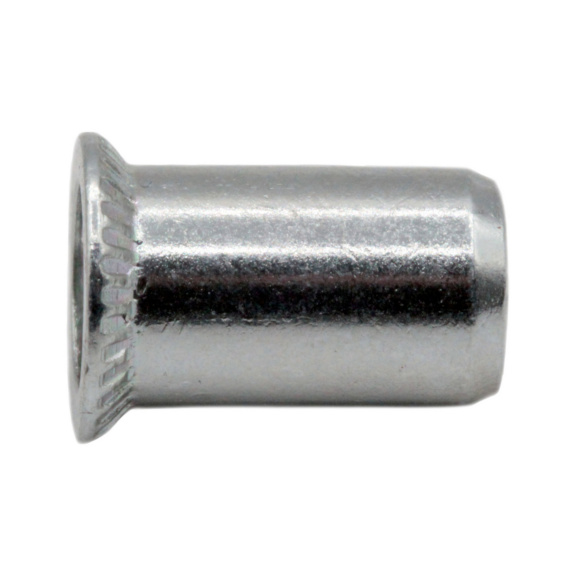

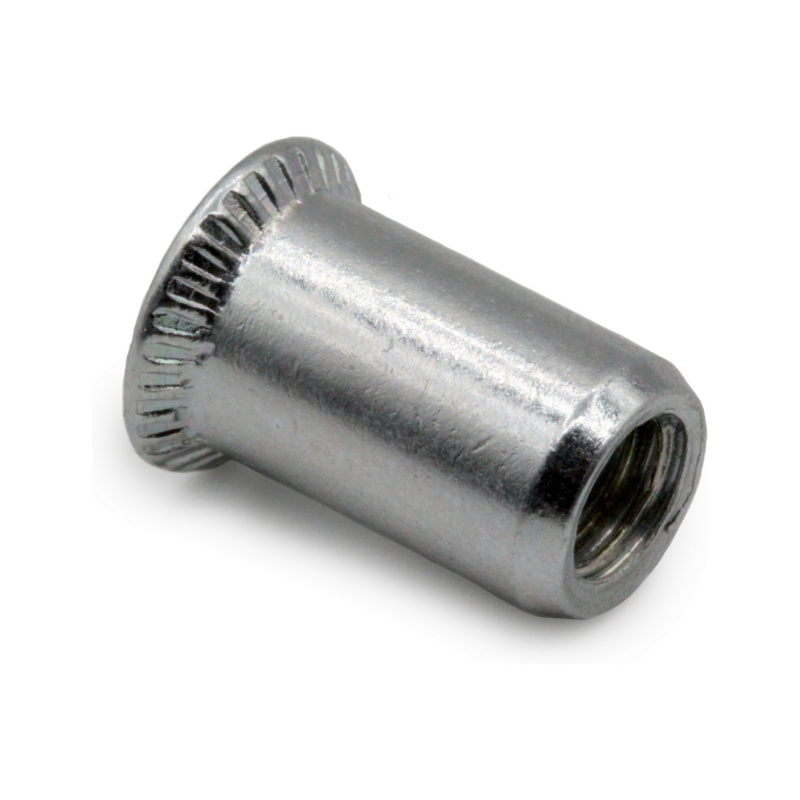

Rivet nut, countersunk head, rifled under the head, open, steel, zinc plated
RIVET NUT ZP COUNTERS. ROUND OPEN M4X11
Art.-no. WM9908294
EAN 6438548074117
With registration you can access the Würth Elektro online shop selection.
Simple and ideal when the place of use is
a thin material where threads are needed.
Round:
The most common when working on a steel sheet,
with normal loads.
Countersunk head:
Used when
flush joint is needed.
Open model:
An effective and strong piercing nut thread without special requirements on the tightness of the joint
Datasheets(X)
Thread type x nominal diameter (D) | M4 |
Length (L) | 11 mm |
Min./max. grip range (E) | 1.50-3.50 mm |
Head diameter (d2) | 9 mm |
Head type | Countersunk head |
Head height (K) | 1.55 mm |
Drill hole diameter | 6 mm |
Outer diameter (d1) | 5.9 mm |
Tension force | 7300 N |
Max. tightening torque | 4 Nm |
Design | Open |
Material | Steel |
Surface | Zinc plated |
