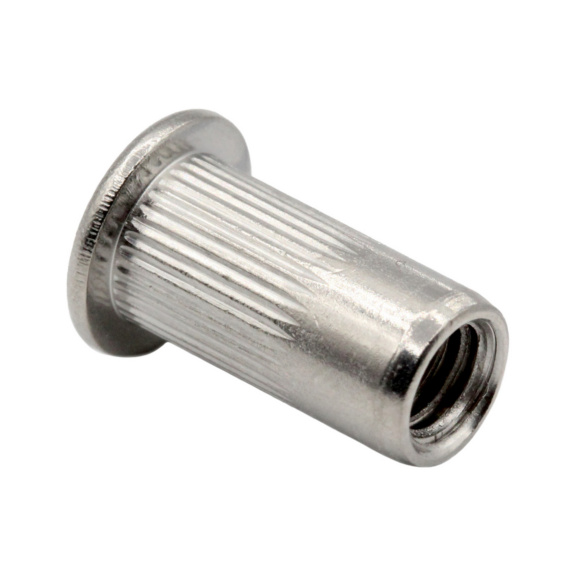

Rivet nut
Rivet nut, round, flange head, threaded, open, A2 stainless steel
RIVETNUT A2 ROUND LARGEH.KNURL M6X14,5
With registration you can access the Würth Elektro online shop selection.
Simple and ideal when the place of use is
a thin material where threads are needed.
Round grooved:
Gives better torque grip.
Suits well for thinner material thicknesses and plastics.
Flange head:
Most commonly used when the head does not have to conform to the surface
Open model:
An effective and strong piercing nut thread without special requirements on the tightness of the joint
Datasheets(X)
 | |
Thread type x nominal diameter | M6 |
Length | 14.5 mm |
Min./max. grip range | 0.50-3.00 mm |
Head diameter | 13 mm |
Head height | 1.5 mm |
Drill hole diameter | 9.1 mm |
Assembly force | 9000 N |
Tension force | 23800 N |
Max. tightening torque | 26.7 Nm |
Design | Open |
Material | Stainless steel A2 |
