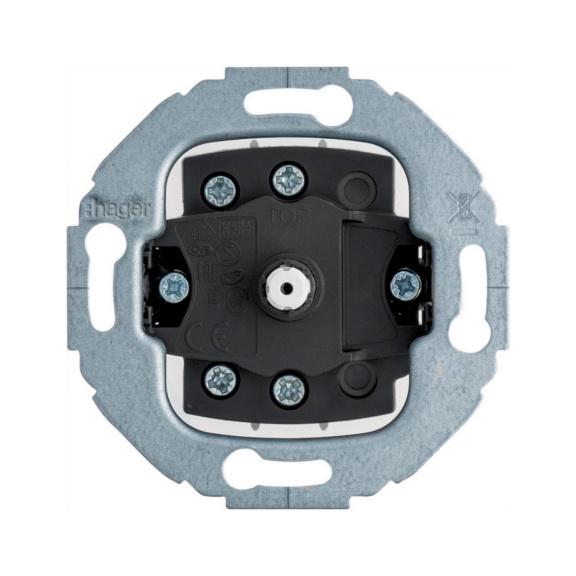

ROTARY SWITCH BODY 5/10A 250V UR
HAGER
Art.-no. WS2115541
EAN 3250610090824
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
Wiring system | Series switch |
Method of operation | Turn button |
Assembly arrangement | Basic element |
Push button switch | No |
Mounting method | Surface mounted |
Type of fastening | Mounting with claw |
With mounting plate | No |
Material | Plastic |
Material quality | Duroplast |
Halogen free | Yes |
Anti-bacterial treatment | No |
Surface protection | Untreated |
Label space/information surface | No |
Lighting | Optional |
Function lighting | Other |
Type of lighting | Other |
Suitable for degree of protection (IP) | IP20 |
Nominal voltage | 250 V |
Rated current | 10 A |
Switching current for fluorescent lamps | 10 AX |
Monitoring contact | No |
Connection type | Screwed terminal |
Heating switch | No |
Washing machine switch | No |
Device width | 71 mm |
Device height | 71 mm |
Device depth | 42 mm |
Built-in depth | 32 mm |
Min. depth of built-in installation box | 35 mm |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
IFTTT support available | No |
Compliant with UK Building Regulations Part M | No |
E-number Finland | 2115541 |
Brand | HAGER |
