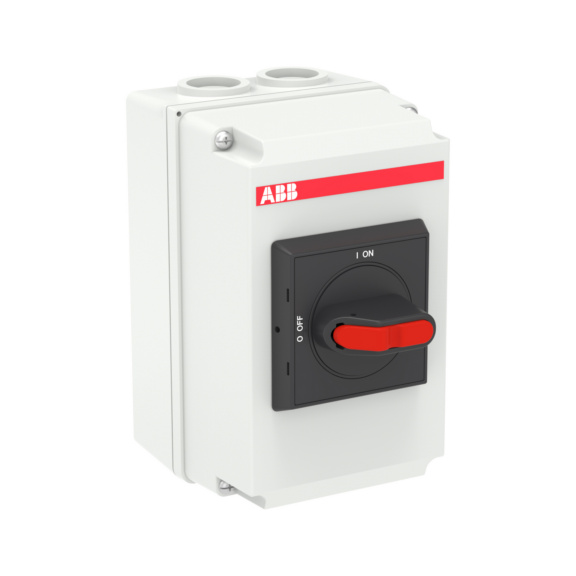

Enclosed switch-disconnector OTDCP32S22M
SAFETY SWITCH 32A 1000VDC OTDCP32S22M
ABB
With registration you can access the Würth Elektro online shop selection.
DC load-breaking switches
OTDC load-breaking switches (16–1600 A) are specially designed for DC applications. With their small size, efficacy, and reliability, the OTDC switches elevate solar power systems to an all-new level.
The flexible OTDC product range also includes solutions for applications with special requirements: 1500 VDC voltages, multi-circuit connections, and joint load outputs up to 1600 A.
Datasheets(X)
Version as main switch | Yes |
Version as maintenance-/service switch | No |
Version as safety switch | No |
Version as emergency stop installation | No |
Version as reversing switch | No |
Number of switches | 1 |
Max. rated operation voltage Ue AC | 1000 V |
Rated operating voltage | 1000-1000 V |
Rated permanent current Iu | 32 A |
Number of poles | 4 |
Number of auxiliary contacts as normally closed contact | 0 |
Number of auxiliary contacts as normally open contact | 0 |
Number of auxiliary contacts as change-over contact | 0 |
Motor drive optional | No |
Motor drive integrated | No |
Voltage release optional | No |
Device construction | Complete device in housing |
Suitable for floor mounting | No |
Suitable for front mounting 4-hole | Yes |
Suitable for front mounting centre | No |
Suitable for distribution board installation | No |
Suitable for intermediate mounting | No |
Colour control element | Black |
Type of control element | Turn button |
Interlockable | No |
Type of electrical connection of main circuit | Screw connection |
Degree of protection (IP), front side | IP65 |
