Version as main switch

Yes

Version as maintenance-/service switch

No

Version as safety switch

No

Version as emergency stop installation

Yes

Version as reversing switch

No

Number of switches

1

Max. rated operation voltage Ue AC

690 V

Rated operating voltage

690-690 V

Rated permanent current Iu

20 A

Rated permanent current at AC-23, 400 V

11 A

Rated permanent current at AC-21, 400 V

20 A

Rated operation power at AC-3, 400 V

4 kW

Rated short-time withstand current lcw

0.14 kA

Rated operation power at AC-23, 400 V

5.5 kW

Conditioned rated short-circuit current Iq

6 kA

Number of poles

3

Motor drive optional

No

Motor drive integrated

No

Voltage release optional

No

Device construction

Built-in device fixed built-in technique

Suitable for front mounting 4-hole

No

Suitable for front mounting centre

Yes

Suitable for distribution board installation

No

Suitable for intermediate mounting

No

Colour control element

Red

Type of control element

Short rotary handle

Interlockable

Yes

Type of electrical connection of main circuit

Screw connection

With pre-assembled cabling

No

Degree of protection (IP), front side

IP65

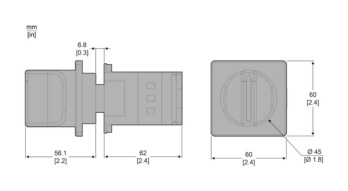

Width

60 mm

Height

60 mm

Depth

123.5 mm

E-number Finland

3606002

Brand

SCHNEIDER ELECTRIC
