Version as main switch

Yes

Version as maintenance-/service switch

No

Version as safety switch

No

Version as emergency stop installation

Yes

Version as reversing switch

No

Number of switches

1

Max. rated operation voltage Ue AC

690 V

Rated operating voltage

690-690 V

Rated permanent current Iu

63 A

Rated permanent current at AC-23, 400 V

57 A

Rated permanent current at AC-21, 400 V

63 A

Rated operation power at AC-3, 400 V

22 kW

Rated short-time withstand current lcw

0.96 kA

Rated operation power at AC-23, 400 V

30 kW

Switching power at 400 V

37 kW

Conditioned rated short-circuit current Iq

10 kA

Number of poles

3

Motor drive optional

No

Motor drive integrated

No

Voltage release optional

No

Device construction

Complete device in housing

Suitable for front mounting 4-hole

Yes

Suitable for front mounting centre

No

Suitable for distribution board installation

No

Suitable for intermediate mounting

No

Colour control element

Red

Type of control element

Turn button

Interlockable

Yes

Type of electrical connection of main circuit

Screw connection

With pre-assembled cabling

No

Degree of protection (IP), front side

IP65

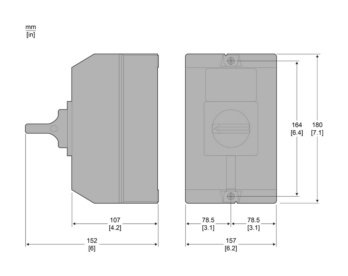

Width

157 mm

Height

180 mm

Depth

152 mm

E-number Finland

3606061

Brand

SCHNEIDER ELECTRIC
