Thread-forming nut WECLS
SELF CLINCH NUT WECLS A2 M6-2
Art.-no. WM030262
EAN 6438190722091
-
Show availability at another Center
In order to check the stock in a Würth Elektro branch, please log in.
If you have any questions, please call our service hotline at +358 10 308 4700.
Do you want to register as an Online Shop user? Please go to the registration page.
Exclusively for trade customers
With registration you can access the Würth Elektro online shop selection.
Shaping nut WECLS is an internally threaded fastening element mounted in thin plates with compression.
The thread and serration in the nuts head shape the thin plate material, ensuring a durable hold.
• High torque tolerance
• Fully even opposite connection end
• Small and neat connection
• Easy compression installation
Product information
Datasheets(X)
 | |

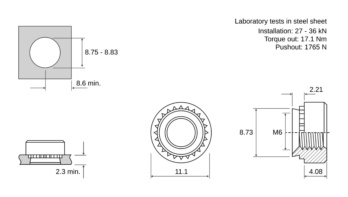

Thread type x nominal diameter | M6 |
External collar diameter | 8.73 mm |
Suitable for min. plate thickness | 2.3 mm |
Height | 4.08 mm |
Diameter | 11.1 mm |
Guideline values for hole diameters | 8.75 mm |
