Surface mounted luminaire Surface Circular IP44 350

Name: Surface mounted luminaire Surface Circular IP44 350
Brand: LEDVANCE
SKU: WS4127143

SF CIRC IP44 1440lm 18W/830
LEDVANCE

Art.-no. WS4127143

EAN 4058075617940

All versions

Similar products

Surface mounted luminaire Surface Circular IP44 350

Art.-no. WS4127143

Quantity

x 1

Show availability at another Center

Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

Locate Center shop
Login/Register
Call customer service: 010 308 4700

Your feedback for this product

With the SURFACE CIRCULAR product line luminaires, you can illuminate various stairwells, staircases and bathrooms cost-effectively. Surface Circular surface mounted luminaires are designed for indoor use at temperatures -20 ... +40 °C.

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

Rated luminous flux according to IEC 62722-2-1	1440 lm
Colour temperature	3000-3000 K
Max. system power	18 W
No dim function	Yes
Dimming DALI	No
Dimming phase cut-on	No
Dimming phase cut-off	No

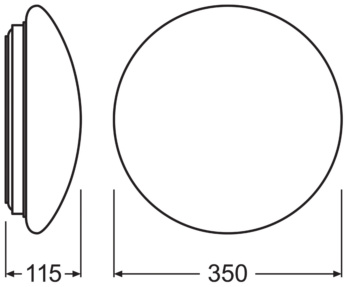

Height/depth	115 mm
Dimming with push-button	No
Type of wiring	Ending
Outer diameter	350 mm
Rated life time L70/B50 at 25 °C	30000 h
With movement sensor	No
Housing colour	White
Surface protection housing	Powder coating
Material cover	Plastic, opal
Degree of protection (IP)	IP44
Type of grid	Matt
Voltage type	AC
Nominal voltage	220-240 V
Nominal current	140-140 mA
Type of control gear	Electronic ballast
With control gear	Yes
Exchangeable control gear	No
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI-2	No
Suitable for workplace according to EN 12464-1	No
Dimming DMX	No
Dimming DSI	No
Dimming potentiometer (integrated)	No
Dimming GPRS	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	No
Dimming mains voltage modulation	No
Suitable for light line configuration	No
Dimming programmable	No
Dimming RF	No
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Lamp type	LED not exchangeable
Dimming depending on control gear	No
Light distributor	Other
Lamp holder	Other
Beam angle	Extreme wide beam >80°
Colour consistency (McAdam ellipse)	SDCM6
Light outlet	Direct
Rated life time L80/B10 at 25 °C	22000 h
Rated life time L90/B10 at 25 °C	15000 h
Impact strength	IK03
Protection class	I
Rated ambient temperature according to IEC 62722-2-1	-20-40 °C
Suitable for emergency lighting	No
Emergency power supply integrated	No
With light source	Yes
With light sensor	No
Covering of the luminaire with thermally insulating material possible	No
With air slots	No
Suitable for ceiling mounting	Yes
E-number Finland	4127143
Brand	LEDVANCE
