Surface mounted luminaire Surface Circular IP44 350
SF CIRC IP44 1440lm 18W/840
LEDVANCE
With registration you can access the Würth Elektro online shop selection.
With the SURFACE CIRCULAR product line luminaires, you can illuminate various stairwells, staircases and bathrooms cost-effectively. Surface Circular surface mounted luminaires are designed for indoor use at temperatures -20 ... +40 °C.
Datasheets(X)
Suitable for wall mounting | Yes |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | Yes |
Suitable for built-in mounting | No |
Suitable for surface mounting | Yes |
Suitable for light line configuration | No |
Suitable for workplace according to EN 12464-1 | No |
Lamp type | LED not exchangeable |
With light source | Yes |
Suitable for number of light sources | 0 |
Lamp holder | Other |
Surface protection housing | Powder coating |
Housing colour | White |
Material cover | Plastic, opal |
Type of grid | Matt |
Voltage type | AC |
Nominal voltage | 220-240 V |
Nominal current | 140-140 mA |
Type of control gear | Electronic ballast |
With control gear | Yes |
Exchangeable control gear | No |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming GPRS | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off | No |
Dimming phase cut-on | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
Dimming depending on control gear | No |
No dim function | Yes |
Light distributor | Other |
Beam angle | Extreme wide beam >80° |
Colour consistency (McAdam ellipse) | SDCM6 |
Light outlet | Direct |
Rated life time L70/B50 at 25 °C | 30000 h |
Rated life time L80/B10 at 25 °C | 22000 h |
Rated life time L90/B10 at 25 °C | 15000 h |
Degree of protection (IP) | IP44 |
Impact strength | IK03 |
Protection class | I |
Rated ambient temperature according to IEC 62722-2-1 | -20-40 °C |
Suitable for emergency lighting | No |
Emergency power supply integrated | No |
With movement sensor | No |
With light sensor | No |
Covering of the luminaire with thermally insulating material possible | No |
With air slots | No |
Max. system power | 18 W |
Luminaire efficacy | 80 lm/W |
Rated luminous flux according to IEC 62722-2-1 | 1440 lm |
Colour of light | White |
Colour temperature | 4000-4000 K |
Colour rendering index CRI | 80-89 |
Power factor | 0.55 |

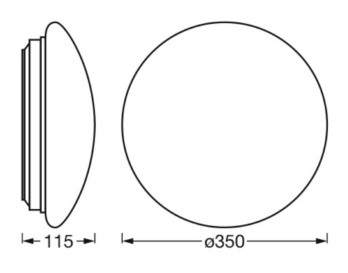

Height/depth | 115 mm |
Outer diameter | 350 mm |
Type of wiring | Ending |
Number of poles | 2 |
Connection type | Push-in clamp |
Total harmonic distortion | 120 |
Photobiological safety according to EN 62471 | RG0 |
Colour of light adjustable | No |
Luminous flux adjustable | No |
Beam angle adjustable | No |
Operation by Bluetooth | No |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
IFTTT support available | Yes |
