LEDVANCE

SF FLAT RD IP54 27W/500 DALI
LEDVANCE

Art.-no. WS4152055
EAN 4099854292774

-

Art.-no. WS4152055

-
Quantity
PU
x 4

Show availability at another Center
Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Suitable for suspended mounting

No

Suitable for ceiling mounting

Yes

Suitable for built-in mounting

No

Suitable for surface mounting

Yes

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

No

Lamp type

LED not exchangeable

With light source

Yes

Suitable for number of light sources

0

Housing material

Plastic

Housing colour

White

Material cover

Plastic, opal

Type of grid

Matt

Voltage type

AC/DC

Nominal voltage

220-240 V

Nominal current

120-120 mA

Type of control gear

Electronic ballast

With control gear

Yes

Exchangeable control gear

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

Yes

Dimming DALI

Yes

Dimming DMX

No

Dimming DSI

No

Dimming potentiometer (integrated)

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off

No

Dimming phase cut-on

No

Dimming programmable

No

Dimming RF

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

Yes

Dimming Zigbee

No

Dimming with push-button

No

No dim function

No

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct

Rated life time L70/B50 at 25 °C

100000 h

Max. number of luminaires per miniature circuit breaker B16 (MCB)

11

Max. number of luminaires per miniature circuit breaker C16 (MCB)

16

Degree of protection (IP)

IP54

Impact strength

IK08

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-20-45 °C

Suitable for emergency lighting

Yes

Emergency power supply integrated

No

With movement sensor

No

With light sensor

No

Covering of the luminaire with thermally insulating material possible

No

With air slots

No

Max. system power

27 W

Luminaire efficacy

140 lm/W

Rated luminous flux according to IEC 62722-2-1

3780 lm

Colour of light

White

Colour temperature

3000-3000 K

Colour rendering index CRI

80-89

Power factor

0.9

Constant light output (CLO)

No

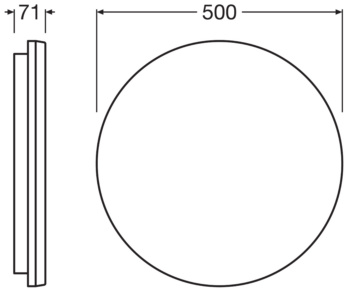

Height/depth

71 mm

Length

500 mm

Outer diameter

500 mm

Type of wiring

Suitable for through wiring

Number of poles

5

Connection type

Push-in clamp

Photobiological safety according to EN 62471

RG0

Colour of light adjustable

Positions

Luminous flux adjustable

Positions

Beam angle adjustable

No

Operation by Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

E-number Finland

4152055

Brand

LEDVANCE
