Safety switch KSM

Name: Safety switch KSM
Brand: KATKO
SKU: WS3662693

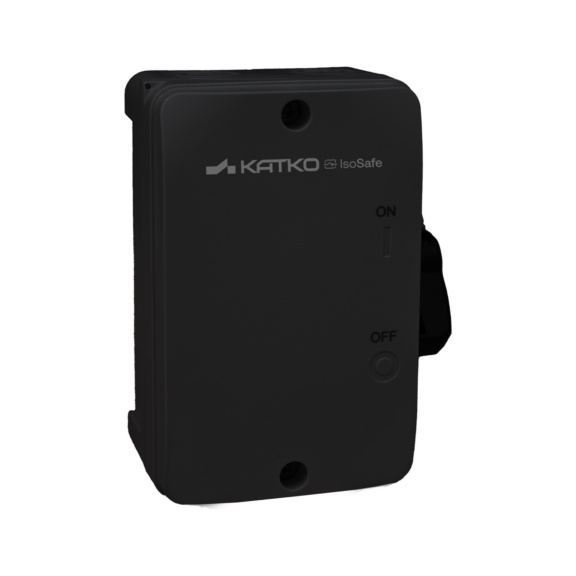

SF SWITCH KSM 216 2X16A 240V 3kW
KATKO

All versions

Similar products

Safety switch KSM

Art.-no. WS3662693

Quantity

x 8

Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

3-pole safety switch with plastic housing, side controlled. Good protection against many chemicals, self-extinguishing material.

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents


Version as main switch	Yes
Version as maintenance-/service switch	Yes
Version as safety switch	Yes
Version as emergency stop installation	No
Version as reversing switch	No
Number of switches	1
Max. rated operation voltage Ue AC	415 V
Rated operating voltage	400-415 V
Rated permanent current Iu	16 A
Rated permanent current at AC-23, 400 V	16 A
Rated permanent current at AC-21, 400 V	16 A
Rated short-time withstand current lcw	1.1 kA
Conditioned rated short-circuit current Iq	25 kA
Number of poles	2
Motor drive optional	No
Motor drive integrated	No
Voltage release optional	No
Device construction	Complete device in housing
Suitable for front mounting 4-hole	No
Suitable for front mounting centre	No
Suitable for distribution board installation	No
Suitable for intermediate mounting	No
Colour control element	Black
Type of control element	Wing knob
Interlockable	Yes
Type of electrical connection of main circuit	Screw connection
Degree of protection (IP), front side	IP67
E-number Finland	3662693
Brand	KATKO
