Mounting method

Wall surface mounting/ceiling surface mounting

Function

Escape route lighting/signage

Suitable for labelling type

Sticker

Type of indicator

Four-sided

With pictogram

Yes

Monitoring equipment

Automatic self test

With remote switch connection

No

With remote control

No

Power supply system

Peripheral (individual battery)

Battery quality

Lithium-ions

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of light sources

1

Lamp holder

None

Number of lighting heads

1

Housing material

Plastic

Housing colour

White

Material cover

Plastic, transparent

Voltage type

AC

Nominal voltage

220-240 V

Type of control gear

LED operating device current-controlled

Exchangeable control gear

Yes

Light distributor

Diffuser lens/optic/panel

Max. number of luminaires per miniature circuit breaker B16 (MCB)

273

Max. number of luminaires per miniature circuit breaker C16 (MCB)

329

Rated life time L70/B50 at 25 °C

60000 h

Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)

82.74 %

Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)

82.74 %

Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)

10 %

Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)

50 %

Constant light output (CLO)

No

Degree of protection (IP)

IP65

Degree of protection (NEMA)

3

Impact strength

IK06

Protection class

II

Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24

No

Rated ambient temperature according to IEC 62722-2-1

25-25 °C

Max. system power

4 W

Rated luminous flux according to IEC 62722-2-1

175 lm

Luminous flux in standby mode

167 lm

Colour temperature

6500-6500 K

Power factor

0.4

Recognition distance

20 m

Nominal operation time

3-4 h

Flickering value Pst LM

0.03

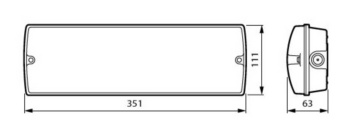

Width

111 mm

Height/depth

63 mm

Type of wiring

Suitable for through wiring

Number of poles

4

Conductor cross section

1.5 mm²

Connection type

Plug-in connection

E-number Finland

4251905

Brand

PHILIPS
