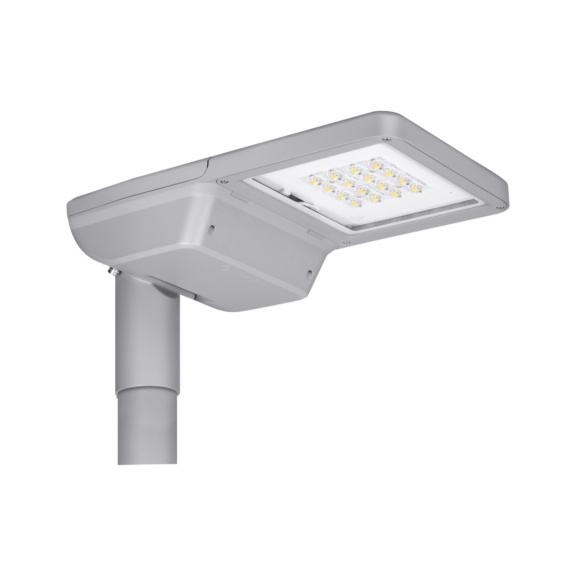

SL FLEX 36W/740 5180LM IP66
LEDVANCE
Art.-no. WS4529738
EAN 4058075552319
With registration you can access the Würth Elektro online shop selection.
60 month warranty
Datasheets(X)
 | |
Mounting method | Post top |
Lamp type | LED not exchangeable |
With light source | Yes |
Lamp holder | None |
Housing material | Aluminium |
Surface protection | Powder coating |
Voltage type | AC |
Nominal voltage | 220-240 V |
Nominal current | 160-160 mA |
Type of control gear | Electronic ballast |
With control gear | Yes |
Exchangeable control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off (trailing edge) | No |
Dimming phase cut-on (leading edge) | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Zigbee | No |
Light distributor | Focal lens |
Degree of protection (IP) | IP66 |
Adjustable optics | No |
Suitable for spigot size | 60-60 mm |
Impact strength | IK08 |
Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24 | No |
Rated ambient temperature according to IEC 62722-2-1 | -40-50 °C |
Remote control | None |
With radio control | No |
Constant light output (CLO) | No |
With light regulation program control | No |
With connection cable | No |
Max. system power | 36 W |
Luminaire efficacy | 144 lm/W |
Colour of light | White |
Colour temperature | 4000-4000 K |
Colour rendering index CRI | 70-79 |
Power factor | 0.9 |

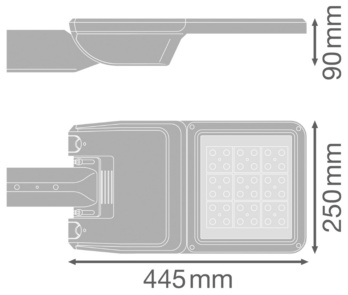

Width | 250 mm |
Height/depth | 90 mm |
Length | 445 mm |
Type of wiring | Ending |
Number of poles | 2 |
Connection type | Push-in clamp |
E-number Finland | 4529738 |
Brand | LEDVANCE |
