SLEEVE SEAL VBS V-TEC21 PG21 PA
Art.-no. WS1711021
EAN 4012195447078
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |

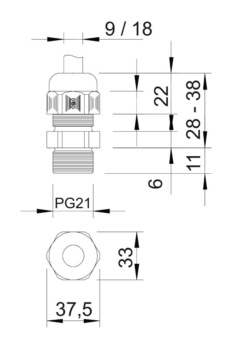

Thread type | PG |
Nominal thread size metric/PG | 21 |
Pitch thread | 1.5 mm |
Thread length | 11 mm |
Wrench width | 33 mm |
Suitable for cable diameter | 9-18 mm |
Material | Plastic |
Material quality | Polyamide (PA) |
Surface protection | Untreated |
Halogen free | Yes |
Glass-fibre reinforced | No |
Degree of protection (IP) | IP68 |
Shock resistant | No |
Bend radius protection/trumpet flare | No |
With locknut | No |
Model | Straight |
Multi seal area | No |
Flat cable coupling | No |
With strain relief | Yes |
Type of sealing | Sealing ring |
Separable screw gland | No |
Operating temperature | -20-65 °C |
Explosion-tested version | No |
For Ex-zone gas | None |
For Ex-Zone dust | None |
E-number Finland | 1711021 |
