Slotted cable trunking tehalit.BA7A
SLOTTED TRUNK. BA7A 60X60 2M PVC GR
UTU
Art.-no. WS1461340
EAN 4012740198943
With registration you can access the Würth Elektro online shop selection.

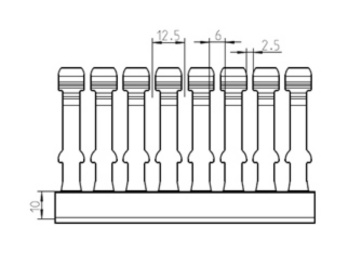

The slotted cable trunking consists of a solid cover and a frame with perforated base and slotted sides to facilitate wiring. If necessary, the side ribs can be cut with a tool to the level of the top edge of the side. The base perforation has been implemented in accordance with the EN 50085 standard.
Datasheets(X)
 | |
Material | Polyvinyl chloride (PVC) |
Height | 60 mm |
Width | 60 mm |
Length | 2000 mm |
Distance of slots | 6.5 mm |
Slit width | 6 mm |
Type of side wall | Slotted |
Halogen free | No |
Self-extinguishing | Yes |
Flexible | No |
Useful cross section | 2708 mm² |
Type of fastening | Bottom perforation |
With cover | Yes |
Colour | Grey |
RAL-number | 7030 |
E-number Finland | 1461340 |
Brand | UTU |
