Slotted cable trunking HF tehalit.HA7
SLOTTED TRUNK. HA7 80X60 2M PC/ABS LGR
UTU
Art.-no. WS1417776
EAN 4012740199278
With registration you can access the Würth Elektro online shop selection.
Halogen-free slotted cable trunking with tool-free cutting of ribs. The trunking can be opened all the way to the base using cutting tools, and the cover remains tightly closed even it is full. Slots for wires up to 6mm² without cutting the ribs. Single compartment with base perforation optimized for DIN rail mounting. Self-extinguishing (UL94 V0), operating temperature -25 °C...+90 °C, UL, CSA and EN 45545-2 certified.
Datasheets(X)
 | |
Material | ABS |
Height | 80 mm |
Width | 60 mm |
Length | 2000 mm |

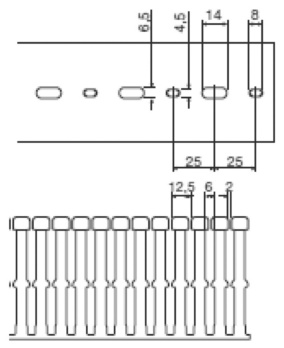

Distance of slots | 6.5 mm |
Slit width | 6 mm |
Type of side wall | Slotted |
Halogen free | Yes |
Self-extinguishing | Yes |
Flexible | No |
Useful cross section | 3848 mm² |
Type of fastening | Bottom perforation |
With cover | Yes |
Colour | Grey |
RAL-number | 7035 |
E-number Finland | 1417776 |
Brand | UTU |
