Plug connector male WINSTA MIDI

SOCKET 3-POLE GRAY 770-743 WAGO
WAGO

Art.-no. WT3600194
EAN 4044918252676

-
Plug connector male WINSTA MIDI

Art.-no. WT3600194

-
Quantity
PU
x 1

Show availability at another Center
Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

The WINSTA plug connection system consists of plug connectors, branch connectors, patch cables, and connection cases. The products provide quick and easy, comprehensive solutions for power supply and lighting control. WINSTA patch cables are machine-made, with spring-technology connectors ensuring maintenance-free solutions throughout operative life. The lock system ensures a fixed, reliable installation. After finishing the WINSTA plug connection system installation, the assembly can easily be test measured through the testing apertures. The WINSTA plug connection system’s benefits are speedy initial installation at the project execution phase and transformability of electricity during building use.

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Rated voltage

250 V

Rated current

25 A

Number of poles

3

Degree of protection (IP)

IP20

Connection type

Spring clamp connection

Model

Bus

Connection cross section (fine-strand)

0.5-4 mm²

Connection cross section (solid-core)

0.5-4 mm²

Colour coding/contact insert

Grey

Type of locking

Central clamp

With strain relief

No

Max. continuous temperature resistance contact part

85 °C

Max. continuous temperature resistance strain relief

105 °C

Housing material

Polyamide (PA)

Contact material

Other

Surface treatment contacts

Other

Rated surge voltage

4 kV

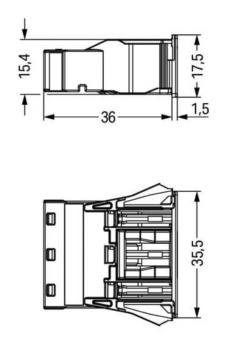

Length

37.5 mm

Height

17.5 mm

Width

35.5 mm

Brand

WAGO
