Plug-in connector WINSTA MINI
Plug-in connector male
SOCKET 3-POLE WHITE 890-233 WAGO
WAGO
With registration you can access the Würth Elektro online shop selection.
The WINSTA plug-in selection consists of plug-in connectors, distribution connectors, pre-assembled connecting cables, and tap-off modules. The products provide quick and easy, comprehensive solutions for power supply and lighting control. WINSTA pre-assembled connection cables are machine-made, with spring-clamp connectors ensuring maintenance-free solutions throughout operative life. The lock system ensures a fixed, reliable installation. After finishing the WINSTA plug connection system installation, the assembly can easily be test measured through the testing apertures. The WINSTA plug connection system’s benefits are speedy initial installation at the project execution phase and transformability of electricity during building use.
Datasheets(X)
 | |
Rated voltage | 250 V |
Rated current | 16 A |
Number of poles | 3 |
Degree of protection (IP) | IP20 |
Connection type | Spring clamp connection |
Connection cross section (fine-strand) | 0.25-1.5 mm² |
Connection cross section (solid-core) | 0.25-1.5 mm² |
Colour coding/contact insert | White |
Type of locking | Separate |
With strain relief | No |
Max. continuous temperature resistance contact part | 85 °C |
Max. continuous temperature resistance strain relief | 105 °C |
Housing material | Polyamide (PA) |
Contact material | Other |
Surface treatment contacts | Other |
Rated surge voltage | 4 kV |

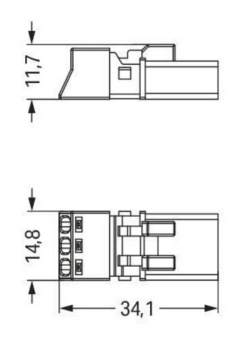

Length | 34.1 mm |
Width | 15 mm |
Brand | WAGO |
