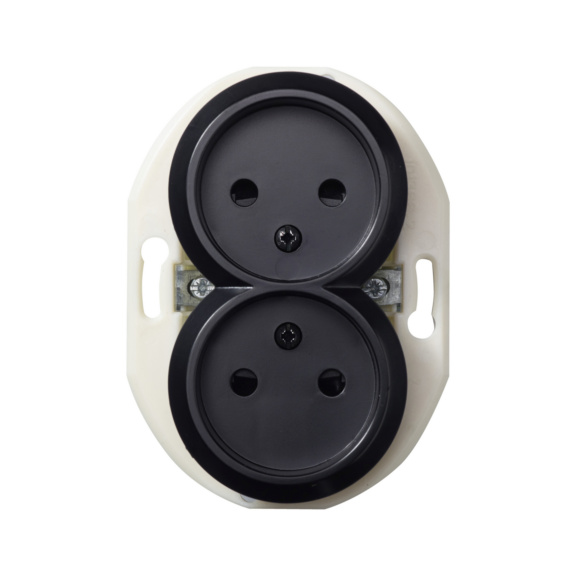

Flush-mounted outlet IP20/IP21 Renova
SOCKET OUTLET 2-N 16A IP21 2X BK RENOVA
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
Renova is a traditional-style wiring device.
Renova IP20/IP21 class single and double outlets can be adapted to combinations. 1 gang, dimensions Ø83/29 mm, and 2 gang Renova, dimensions Ø83x105/22 mm, outlets are installed separately.
Datasheets(X)
Model | CEE 7/1 unearthed |
Number of active contacts (round) | 4 |
With signal lamp | No |
Number of phases | 1 |
Imprint/indication | None |
Connection type | Screwed terminal |
With hinged lid | No |
With enhanced contact protection | Yes |
Label space/information surface | No |
Colour | Black |
RAL-number (similar) | 9005 |
Metallic colour | No |
Transparent | No |
Lockable | No |
Eject-mechanism | No |
Insulated mounting | Yes |
With function lighting | No |
With orientation lighting | No |
Overvoltage protection | No |
Fault current protection | No |
With miniature fuse | No |
Mounting method | Built-in |
Type of fastening | Mounting with claw and screw |
Material | Plastic |
Material quality | Thermoplastic |
Halogen free | Yes |
Surface protection | Untreated |
Surface finishing | Matt |
Anti-bacterial treatment | No |
With on/off switch | No |
With loop through function | Yes |
Rotated central insert | No |
Nominal current | 16 A |
Nominal voltage | 250 V |
Frequency | 50-60 Hz |
Suitable for degree of protection (IP) | IP20 |
Device width | 71 mm |
Device height | 92 mm |
Device depth | 42 mm |
Min. depth of built-in installation box | 25 mm |
E-number Finland | 2500323 |
Brand | SCHNEIDER ELECTRIC |
