SOCKET OUTLET 2-P 16A IP44 PK16/9
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Model | Protective contact CEE 7/3 / CEE 7/4 (type F) |
Number of units | 2 |
Connection type | Screwed terminal |
With hinged lid | Yes |
With enhanced contact protection | Yes |
Colour | Brown |
Transparent | No |
Lockable | No |
Material | Metal |
Material quality | Aluminium |
Halogen free | Yes |
Surface protection | Other |
Surface finishing | Matt |
Nominal current | 16 A |
Nominal voltage | 250 V |
Suitable for degree of protection (IP) | IP44 |
Impact strength | IK08 |

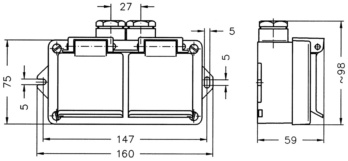

Device width | 98 mm |
Device height | 59 mm |
Device depth | 160 mm |
E-number Finland | 2401963 |
