Surface-mounted Schuko outlet IP44
SOCKET OUTLET SCHUKO 16A IP44 1XPK16/1
SELCAST
With registration you can access the Würth Elektro online shop selection.
Aluminium outlet, grey epoxied 250V, 16A, IP 44
PG 16 inlet. RAL-7035 are marine models: stainless steel cover screws and nitrile rubber seals.
Colour RAL-7035 QN quality: higher UV protection and corrosion prevention, the powder paint used has GSB, Qualicoat and MED approval.
Datasheets(X)
Model | Protective contact CEE 7/3 / CEE 7/4 (type F) |
Number of units | 1 |
Connection type | Screwed terminal |
With hinged lid | Yes |
With enhanced contact protection | Yes |
Colour | Grey |
RAL-number (similar) | 7035 |
Transparent | No |
Lockable | No |
Material | Metal |
Material quality | Aluminium |
Halogen free | Yes |
Surface protection | Other |
Surface finishing | Matt |
Nominal current | 16 A |
Nominal voltage | 250 V |
Suitable for degree of protection (IP) | IP44 |
Impact strength | IK08 |

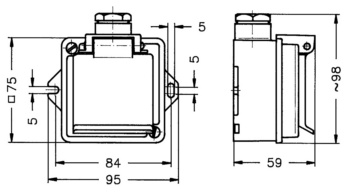

Device width | 98 mm |
Device height | 59 mm |
Device depth | 95 mm |
E-number Finland | 2401851 |
Brand | SELCAST |
