Modular luminaire IP40 Start Panel LED 600 MP DALI
START PANEL LED 830/840 4700lm DALI
SYLVANIA
Art.-no. WS4289276
EAN 5410288480923
With registration you can access the Würth Elektro online shop selection.
The Start Panel luminaire series offers even better luminous efficacy, up to 133 lm/W. The series offers great options for general and office lighting, such as lobbies, corridors and lounges. Available with either an opal or a microprism diffuser for low UGR19 value. Designed for flush-mounting, but can also be surface-mounted or suspended using separately ordered frame or suspension kit.
5 years warranty
Datasheets(X)
 | |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | Yes |
Suitable for built-in mounting | Yes |
Suitable for surface mounting | No |
Suitable for light line configuration | No |
Suitable for workplace according to EN 12464-1 | Yes |
Lamp type | LED not exchangeable |
With light source | Yes |
Suitable for number of light sources | 1 |
Housing material | Steel |
Housing colour | White |
Material cover | Other |
Type of grid | None |
Voltage type | AC |
Nominal voltage | 220-240 V |
Nominal current | 152.8-166.7 mA |
Type of control gear | LED operating device current-controlled |
With control gear | Yes |
Exchangeable control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | Yes |
Dimming DALI | Yes |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off (trailing edge) | No |
Dimming phase cut-on (leading edge) | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
Light distributor | Diffuser lens/optic/panel |
Light distribution | Symmetric |
Beam angle | > 80° - Extreme wide beam |
Colour consistency (McAdam ellipse) | SDCM3 |
Light outlet | Direct |
Rated lifetime L70/B50 at 25 °C | 100000 h |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 59 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 59 |
Impact strength | IK03 |
Protection class according to IEC 61140 | II |
Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24 | No |
Rated ambient temperature according to IEC 62722-2-1 | 5-25 °C |
Suitable for emergency lighting | No |
With movement sensor | No |
With light sensor | No |
Covering of the luminaire with thermally insulating material possible | Yes |
With air slots | No |
Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
Max. system power | 33 W |
Colour temperature | 3000-4000 K |
Colour rendering index CRI | 80-89 |
Power factor | 0.9 |
Constant light output (CLO) | No |

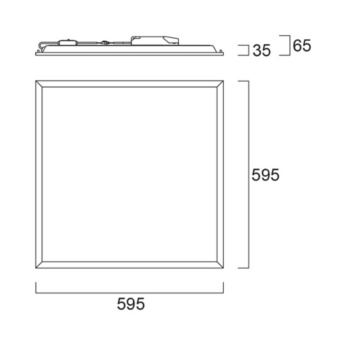

Width | 595 mm |
Height/depth | 35 mm |
Length | 595 mm |
Built-in length | 595 mm |
Built-in width | 595 mm |
Built-in height/depth | 35 mm |
Type of wiring | Loop-through wiring included |
Number of poles | 4 |
Conductor cross section | 2.5 mm² |
Connection type | Cable |
Photobiological safety according to EN 62471 | RG0 |
Unified Glare Ratio (UGR) | 19 |
Colour of light adjustable | No |
Luminous flux adjustable | Continuously variable |
Beam angle adjustable | No |
Operation by Bluetooth | No |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
IFTTT support available | No |
E-number Finland | 4289276 |
Brand | SYLVANIA |
