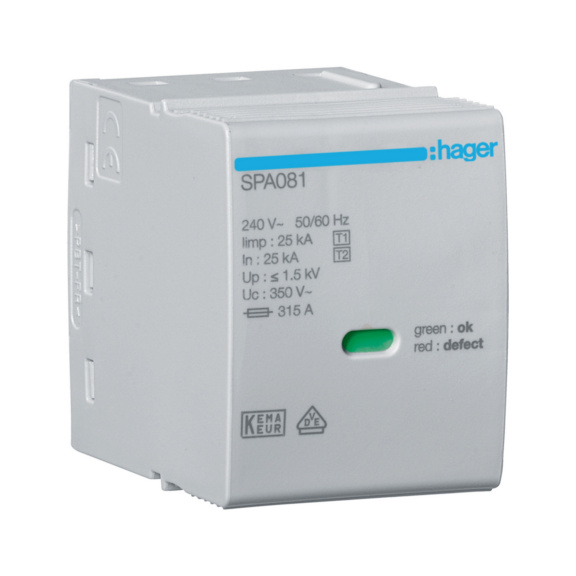

SURGE ARRESTOR SPA081 T1+T2 1.5KV FOR SP
HAGER
Art.-no. WS3246549
EAN 3250615514820
With registration you can access the Würth Elektro online shop selection.
24 month warranty
Datasheets(X)
System configuration DC | No |
System configuration IT | No |
System configuration TN | Yes |
System configuration TN-C | No |
System configuration TN-C-S | No |
System configuration TN-S | No |
System configuration TT | Yes |
System configuration other | No |
Number of poles | 1 |
Lightning impulse current (10/350 µs) | 25 kA |
Max. continuous voltage AC | 350 V |
Nominal voltage AC | 240 V |
Voltage protection level | 1.5 kV |
Voltage protection level L-N | 1.5 kV |
Follow current extinguishing capability | 25 kA |
Specific energy (W/R) | 160 kJ/Ohm |
Mounting method | DIN rail (top hat rail) 35 mm |
Construction size | 2 modular spacing |
Remote signalling | Yes |
Signalling at the device | Optical |
Test class | Type 1 + 2 |
Integrated backup fuse | No |
Degree of protection (IP) | IP20 |
E-number Finland | 3246549 |
Brand | HAGER |
