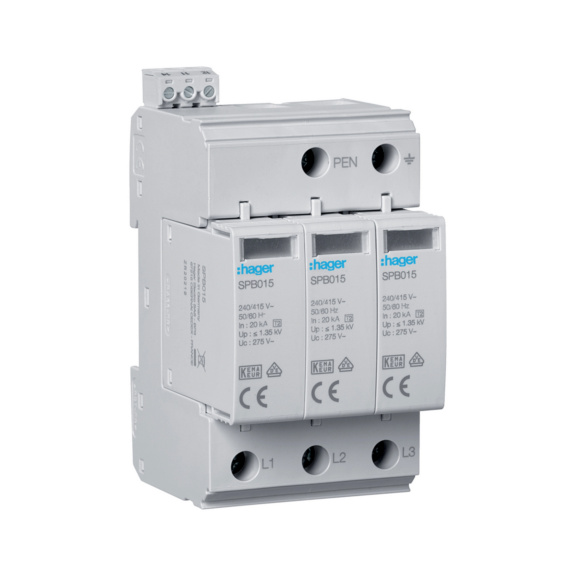

SURGE ARRESTOR SPB315 3P T2 TNC 1.35KV 2
HAGER
Art.-no. WS3246566
EAN 3250615514899
With registration you can access the Würth Elektro online shop selection.
24 month warranty
Datasheets(X)
System configuration DC | No |
System configuration IT | No |
System configuration TN | Yes |
System configuration TN-C | Yes |
System configuration TN-C-S | No |
System configuration TN-S | No |
System configuration TT | No |
System configuration other | No |
Number of conductors (without earthing) | 3 |
Nominal discharge surge current (8/20) | 20 kA |
Max. discharge surge current (8/20) | 40 kA |
Nominal voltage AC | 400 V |
Max. continuous voltage AC | 275 V |
Max. PV-voltage | 0 V |
Voltage protection level | 1.35 kV |
Voltage protection level L-N | 1.35 kV |
Max. overcurrent protection device, parallel connection (fuse) | 125 A |
Max. overcurrent protection device, series connection (fuse) | 80 A |
Short-circuit breaking capacity (Isccr) | 25 kA |
Integrated short-circuit protection | No |
Integrated backup fuse | No |
Leakage-current free | No |
Mounting method | DIN rail (top hat rail) 35 mm |
Construction size | 3 modular spacing |
Max. conductor cross section solid (solid, stranded) | 35 mm² |
Max. conductor cross section flexible (fine-strand) | 25 mm² |
With remote signalling contact | Yes |
Signalling at the device | Optical |
Category type 2 | Yes |
Degree of protection (IP) | IP20 |
E-number Finland | 3246566 |
Brand | HAGER |
