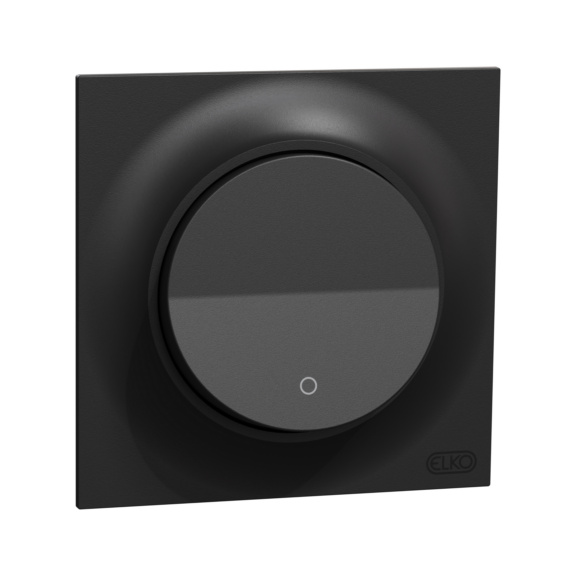

Switch ELKO One
SWITCH 2/16A/IP21 UKR BK DIY ELKO ONE
SCHNEIDER ELECTRIC
Art.-no. WS2104795P
EAN 3606488204922
With registration you can access the Würth Elektro online shop selection.
The ELKO One switch offers a stylish and practical solution for modern electrical installations. The switches are equipped with either screw terminals with side entry or spring terminals, where the conductors are conveniently inserted from the rear. The switch is compatible with the indicator light, rocker arm, and lens.
Datasheets(X)
Wiring system | Switch 2-pole |
Method of operation | Rocker/button |
Assembly arrangement | Basic element with complete housing |
Push button switch | No |
Number of rockers | 1 |
Mounting method | Built-in |
Type of fastening | Screw mounting |
With mounting plate | No |
Material | Plastic |
Material quality | Thermoplastic |
Halogen free | Yes |
Anti-bacterial treatment | No |
Surface protection | Untreated |
Surface finishing | Matt |
Colour | Black |
RAL-number (similar) | 9005 |
Label space/information surface | Yes |
Lighting | Optional |
Function lighting | Other |
Type of lighting | LED exchangeable |
Suitable for degree of protection (IP) | IP21 |
Impact strength | IK07 |
Nominal voltage | 250 V |
Rated current | 16 A |
Switching current for fluorescent lamps | 10 AX |
Monitoring contact | No |
Connection type | Screwed terminal |
Heating switch | No |
Washing machine switch | No |
Device width | 87 mm |
Device height | 87 mm |
Device depth | 30 mm |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Min. depth of built-in installation box | 12 mm |
Compatible with Amazon Alexa | No |
IFTTT support available | No |
E-number Finland | 2104795 |
Brand | SCHNEIDER ELECTRIC |
