Changeover switch KU 463 4x63A 400V 22kW
SWITCH 4-P KU 463VV LK11 4X63A
KATKO
With registration you can access the Würth Elektro online shop selection.

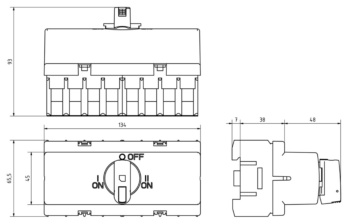

Changeover switch 463
- 4-pole
- 63A
- DIN rail mounting
Includes 200mm shaft L=200 AD11/VT (3600271) and
handle LK 11 1-0-2 (3600957)
On order, shaft 100mm L=100 AD11/VT (3600331) or
shaft 300mm L=300 AD11/VT (3600272)
In addition, the net changeover switch can be equipped with an auxiliary contactor block VV1.V (3600739)
Datasheets(X)
 | |
Version as main switch | Yes |
Version as maintenance-/service switch | No |
Version as safety switch | No |
Version as emergency stop installation | No |
Version as reversing switch | No |
Max. rated operation voltage Ue AC | 690 V |
Rated operating voltage | 400-690 V |
Rated permanent current Iu | 80 A |
Rated permanent current at AC-21, 400 V | 80 A |
Rated short-time withstand current lcw | 2.3 kA |
Rated operation power at AC-23, 400 V | 22 kW |
Number of poles | 8 |
Motor drive optional | No |
Motor drive integrated | No |
Voltage release optional | No |
Device construction | Complete device in housing |
Suitable for floor mounting | Yes |
Suitable for front mounting 4-hole | No |
Suitable for front mounting centre | No |
Suitable for distribution board installation | No |
Suitable for intermediate mounting | No |
Colour control element | Black |
Type of control element | Short thumb-grip |
Interlockable | Yes |
Type of electrical connection of main circuit | Screw connection |
Degree of protection (IP), front side | IP20 |
E-number Finland | 3620276 |
Brand | KATKO |
