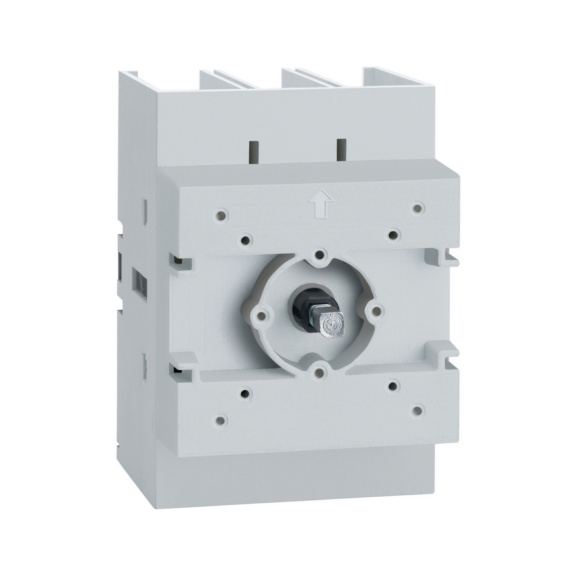

Switch frame TeSys Vario
SWITCH BODY SWITCH 3P CVLS3P063D2 63A
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
VARIO load switch frame, 0-1, without reverser, 3x40A, base or cover mounting
18 month warranty
Datasheets(X)
Version as main switch | Yes |
Version as maintenance-/service switch | No |
Version as safety switch | No |
Version as emergency stop installation | No |
Version as reversing switch | No |
Number of switches | 1 |
Max. rated operation voltage Ue AC | 690 V |
Rated operating voltage | 0-690 V |
Rated permanent current Iu | 63 A |
Rated permanent current at AC-23, 400 V | 63 A |
Rated permanent current at AC-21, 400 V | 63 A |
Rated short-time withstand current lcw | 2500 kA |
Rated operation power at AC-23, 400 V | 30 kW |
Switching power at 400 V | 30 kW |
Conditioned rated short-circuit current Iq | 50 kA |
Number of poles | 3 |
Motor drive optional | No |
Motor drive integrated | No |
Voltage release optional | No |
Device construction | Complete device in housing |
Suitable for front mounting 4-hole | Yes |
Suitable for front mounting centre | No |
Suitable for distribution board installation | Yes |
Suitable for intermediate mounting | No |
Type of electrical connection of main circuit | Other |
With pre-assembled cabling | No |
Degree of protection (IP), front side | IP20 |
Degree of protection (NEMA) | Other |
Width | 70 mm |
Height | 70 mm |
Depth | 100 mm |
E-number Finland | 3606113 |
Brand | SCHNEIDER ELECTRIC |
