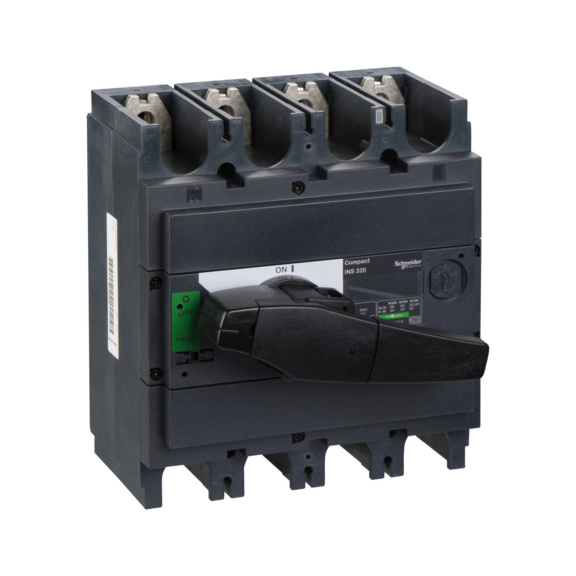

Switch-disconnector ComPacT Schneider
SWITCH DISCONNECTOR COMPACT 4P INS320 BK
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
Compact INS/INV switch-disconnectors are suitable for all low-voltage applications where reliable and secure isolation, separation and switching functions are required.
18 month warranty
Datasheets(X)
Version as main switch | Yes |
Version as maintenance-/service switch | Yes |
Version as safety switch | No |
Version as emergency stop installation | No |
Version as reversing switch | No |
Number of switches | 1 |
Max. rated operation voltage Ue AC | 690 V |
Rated operating voltage | 690-690 V |
Rated permanent current Iu | 320 A |
Rated permanent current at AC-23, 400 V | 320 A |
Rated short-time withstand current lcw | 20 kA |
Rated operation power at AC-23, 400 V | 160 kW |
Number of poles | 4 |
Number of auxiliary contacts as change-over contact | 4 |
Motor drive optional | No |
Motor drive integrated | No |
Voltage release optional | No |
Device construction | Built-in device fixed built-in technique |
Suitable for front mounting 4-hole | Yes |
Suitable for front mounting centre | Yes |
Suitable for distribution board installation | Yes |
Suitable for intermediate mounting | No |
Colour control element | Black |
Type of control element | Long rotary handle |
Interlockable | Yes |
Type of electrical connection of main circuit | Screw connection |
Degree of protection (IP), front side | IP40 |
E-number Finland | 3653692 |
Brand | SCHNEIDER ELECTRIC |
