T-component KST hot dip galvanised, Meka
T-PIECE KST-200 R=600 HDG
MEKA
With registration you can access the Würth Elektro online shop selection.

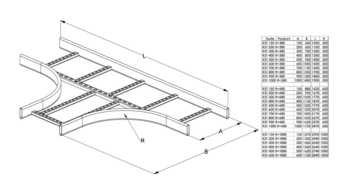

KST T-components are used to create T-junctions in KS20, KS60, KS80 and KS80 SP2.0 ladder shelves. The T-component comes in the radius alternatives R=300 mm, R=600 mm, and R=1,000 mm.
Datasheets(X)
Type of side joist | Tube shape (closed) |
Type of rung | Perforated profile |
Cable ladder height | 60 mm |
Cable ladder width | 200 mm |
Inner radius | 600 mm |
Model | Without connector |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Material | Steel |
Surface protection | Hot-dip galvanized |
E-number Finland | 1449583 |
Brand | MEKA |
