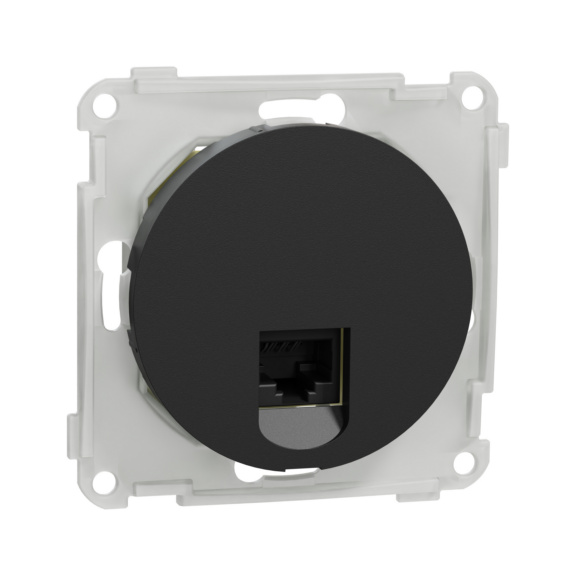

Telecom outlet data 1X8 CAT6 ELKO One ELKO One
Telecom outlet 1X8 CAT6
TELEBOX DATA 1X8 CAT6 UTP BK ELKO ONE
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
Telecom outlet 1x8 CAT6 UTP (direct). LSA connection terminals. Telecommunications network category: 6.
Datasheets(X)
 | |
Surface mounting | No |
Flush-mounted installation | Yes |
Duct installation | No |
Floor box/subfloor mounted | No |
Type of fastening | Screwing |
Assembly arrangement | Basic element with central cover plate |
Type of connector | RJ45 8(8) |
With buses/couplings | No |
Suitable for number of connectors | 1 |
Category | 6 |
Colour | Black |
RAL-number | 9005 |
Connection type | LSA |
Shielded buses | No |
Shielded housing | No |
With label space | No |
Compatible with third-party covers | No |
Separate strain relief | No |
Outlet direction | Straight |
With dust cover | No |
With terminal resistor | No |
Degree of protection (IP) | IP20 |
Mechanical coding | No |
Colour coding | No |

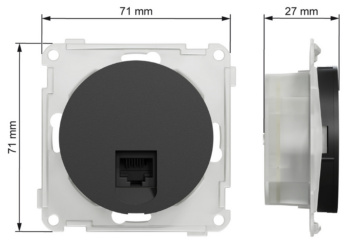

Device width | 71 mm |
Device height | 71 mm |
Device depth | 27 mm |
E-number Finland | 7204227 |
Brand | SCHNEIDER ELECTRIC |
